The Unique Feature: Bevel-Gear Cam Drive—What It Is, Why It Is Unique, and How It Feels

A bevel-drive shaft is a vertical shaft running inside the engine from the crankshaft area up to the camshaft, driving it mechanically. Kawasaki has used this principle since the W1 of 1966 and has retained it in the W800 to this day—as the only production motorcycle manufacturer in the world still doing so. The usual solution is a timing chain. The bevel-drive system is visible from the outside: on the right side of the engine, the characteristic shaft-drive housings immediately distinguish the W800 visually from every other retro motorcycle.

This is not a historical relic but a deliberate engineering decision. A bevel-drive system runs with high precision, is resistant to wear, and produces a characteristic mechanical sound.

Forty-eight horsepower from 773 cc is hardly headline performance, but nearly 63 Nm of torque is already available at 4,800 rpm. The result is friendly, easily controlled performance with smooth throttle response. The 360-degree crank—both pistons moving up and down together—creates a rhythmic, pulsing character. The parallel twin burbles quietly through its mufflers, soft and unobtrusive, hardly like a machine from the roaring Sixties. Yet once underway, its character becomes unmistakable.

Engine and Character: Long-Stroke, Torque-Focused, Elastic—the Antidote to the Revs Race

A 77 mm bore and 83 mm stroke define a long-stroke engine. Compared with high-revving sportbike motors, the longer stroke favors early, substantial torque. The W800 is at its best at low to medium engine speeds. Up to 4,000 rpm it remains cultivated and mild; above 4,000 rpm, a light tingling begins to reach the hands and seat. That is characteristic rather than troublesome. The five-speed transmission is deliberately matched to this power delivery. There is no sixth gear because the W800 is not a motorcycle that constantly makes you search for the perfect ratio.

The fuel injection is hidden behind chrome covers, although the wiring could have been routed more discreetly—an old, minor criticism. The assist/slipper clutch reduces lever effort and helps prevent rear-wheel hop during downshifts. The twin peashooter mufflers are chrome-clad and double-walled so they resist discoloration. Kawasaki says the exhaust note was deliberately tuned around the characteristic sound of the 360-degree crankshaft.

Design and Execution: Three Versions With Different Characters—W800, Street, and Café

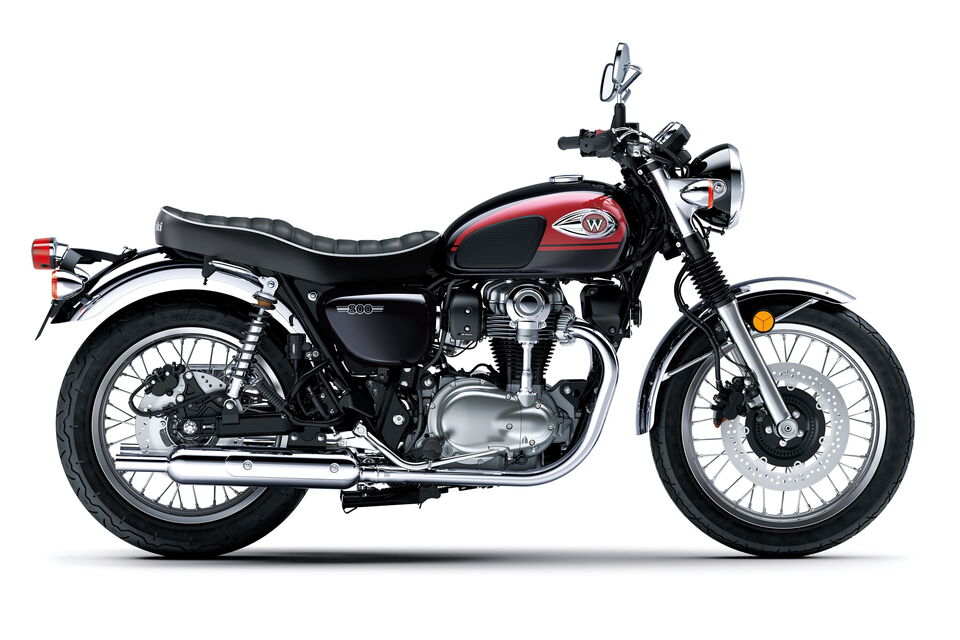

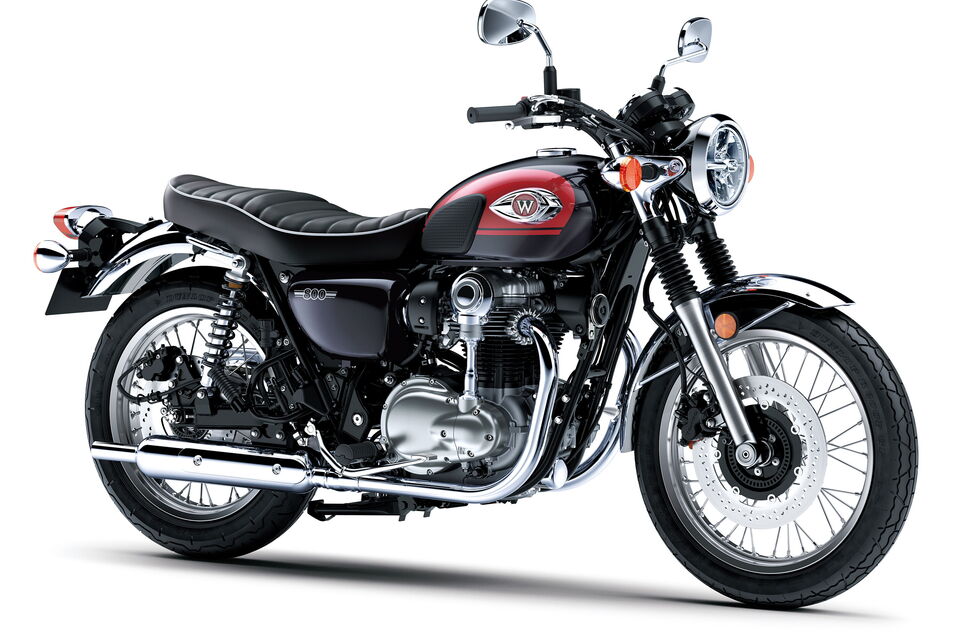

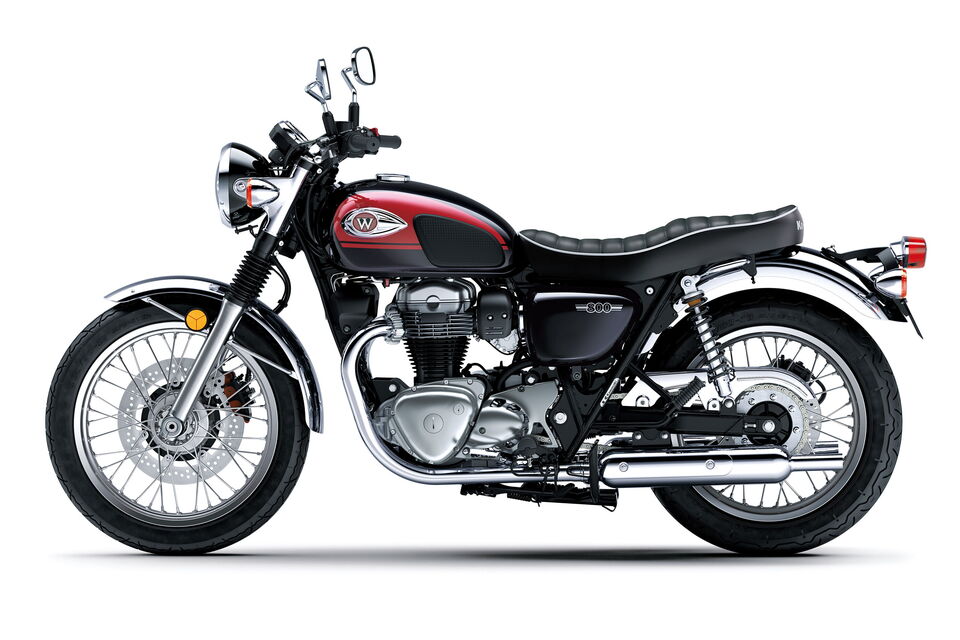

The W800 is offered in three versions that differ mainly in handlebar, seat, wheel size, and braking hardware. The standard W800 uses a 19-inch front wheel rather than the 18-inch setup on the Street and Café, a wider handlebar than the Café, a flat one-piece seat with a settled riding position, and a silver-finished engine. The W800 Street has an upright position with a wide handlebar and a black-painted engine. The W800 Café uses clip-on-style handlebars, a two-tone humpback seat, and a small headlight fairing for a sportier riding position, along with a black-painted engine.

All three versions share wire-spoke wheels, gaiters on the 41 mm fork, chrome-clad steel fenders, twin instruments with analog speedometer and tachometer, model-specific typography and an additional LCD display, a 170 mm LED headlight with a round chrome bezel, round turn signals with amber lenses and chrome housings, tank knee pads, and a center stand as standard—an unusual feature in this class. Weight ranges from around 221 kg for the Street to 228 kg for the standard W800, while seat height ranges from 770 mm on the Street to 795 mm on the standard W800.

Chassis and Ergonomics: Soft, Comfort-Oriented, Upright—the Suspension of Relaxed Riding

The closed double-cradle frame made from round steel tubing is exactly the right traditional construction for this type of motorcycle. The conventional 41 mm telescopic fork wears gaiters, while classic twin rear shocks provide adjustment. Suspension tuning is soft and comfort-oriented. It communicates the right information without becoming nervous or harsh, delivering a forgiving riding feel that encourages relaxation rather than speed.

The standard version’s 19-inch front wheel produces the typical steering character of a larger wheel: calmer and slightly slower at the steering head, more stable in a straight line, and requiring a little more initiative to turn in—exactly the character of a classic road motorcycle. The Street and Café versions with 18-inch front wheels steer a touch more quickly. The W800 is well suited to longer rides: a broad handlebar, relaxed seating position, and standard center stand make travel and routine preparation easy. The tank holds 15 liters. At around 4.0 L/100 km in the WMTC cycle, range exceeds 300 km.

Availability and Price in Germany: Ask Dealers About Inventory—No Official MY2026 Price From Kawasaki Germany

The W800 was not explicitly included in Kawasaki Germany’s official price announcement for model year 2026. In the United States, the MY2026 model is available in Pearl Crystal White for $10,699. In Germany, dealers still have remaining MY2024 and MY2025 inventory from around EUR 10,380; the last officially communicated German new-bike price was approximately EUR 10,645 for MY2024. At editorial deadline, it remained unclear whether and when an official MY2026 German price would be announced.

Technically, the model has remained unchanged since the MY2021 Euro 5 homologation. Engine, chassis, brakes, and equipment are the same. The current W800 has no traction control, electronic riding modes, or IMU. That is intentional. The W800 targets riders who regard the absence of high-tech rider aids as part of its appeal. Kawasaki’s starter bonus—EUR 1 per cc, capped at EUR 800—applies to Kawasaki new motorcycles generally; whether it can be applied to remaining W800 dealer inventory must be checked individually. The four-year warranty remains in place.

Verdict

The W800 has a defining feature no other manufacturer still offers: a bevel-gear-driven camshaft. Add a 360-degree crank, long-stroke engine character, wire-spoke wheels, chrome-clad steel fenders, and a riding experience deliberately removed from the faster-higher-further mindset. The motorcycle has effectively had no direct rival since 2011, and that is unlikely to change. If you want a bevel-drive parallel twin, there is no alternative to the W800.



Quick Check

+ Bevel-gear camshaft drive: the only current production motorcycle worldwide with this construction; visible through the characteristic housings on the right side of the engine.

+ 360-degree crankshaft: synchronized piston movement creates a rhythmic, pulsing character and unmistakable riding feel.

+ Long-stroke engine architecture, 77 mm bore / 83 mm stroke: 62.9 Nm at just 4,800 rpm; elastic, friendly, and free of high-rpm stress.

+ 48 hp: A2-compatible from the factory with no restriction required.

+ Assist/slipper clutch: light lever effort and secure downshifts.

+ Chrome-clad, double-wall peashooter mufflers: resist discoloration and are acoustically tuned to the engine character.

+ Wire-spoke wheels on all versions; chrome-clad steel fenders; fork gaiters.

+ Twin analog instruments, speedometer + tachometer, with model-specific typography and supplemental LCD.

+ Center stand standard: rare in this class and useful for maintenance and parking.

+ 170 mm LED headlight with chrome bezel: modern lighting performance with classic appearance.

+ 15-liter tank; approx. 4.0 L/100 km; more than 300 km range.

+ Three versions: W800 with 19-inch front wheel and silver engine; Street with 18-inch wheel, black engine, upright position; Café with 18-inch wheel, black engine, clip-ons, and humpback seat.

+ 4-year warranty with unlimited mileage.

+ No direct competition worldwide.



– No official MY2026 German price announced: ask dealers about remaining inventory; prices vary by stock and version.

– No traction control, cornering ABS, or electronic riding modes: deliberate, but a gap for riders expecting modern electronics.

– Five-speed transmission: appropriate to the concept, but the lack of a sixth gear is limiting during sustained highway use.

– Approx. 221 kg for the Street to 228 kg for the standard W800 ready to ride: no problem once moving, but maneuvering requires some muscle.

– Fuel-injection wiring behind the chrome covers is not completely hidden: a long-standing detail criticism remains unresolved.

– No LED taillight or turn signals: classically styled, but behind modern lighting standards.

– Vibration becomes noticeable above roughly 4,000 rpm: characteristic, but not everyone will enjoy it.

– Technically unchanged since MY2021: anyone waiting for an update will not find one here.



Technical Specifications: Kawasaki W800 (2026)

Model Series: EJ800A, 2019-present; Euro 5 from MY2021; technically unchanged since MY2021

Engine: Parallel twin, 773 cc, air-cooled, DOHC, four valves per cylinder; bevel-gear camshaft drive; 360-degree crankshaft; long-stroke architecture, 77 mm bore / 83 mm stroke; fuel injection; assist/slipper clutch; five-speed; chain final drive

Power: 48 hp / 35 kW at 6,000 rpm; A2-compatible from the factory

Torque: 62.9 Nm at 4,800 rpm

Bevel Drive: Overhead camshaft driven by a vertical shaft; the only current production motorcycle worldwide using this construction

Frame: Closed double-cradle frame, round steel tubing

Fork: Conventional 41 mm telescopic fork with gaiters

Rear Shocks: Twin rear shocks; adjustable

Version Overview: W800: 19/18-inch wheels, silver engine, flat seat, wide handlebar, 795 mm seat height, 228 kg. Street: 18/18-inch wheels, black engine, 770 mm, 221 kg. Café: 18/18-inch wheels, black engine, clip-on-style bars, humpback seat, 790 mm, 222 kg

Brakes: Front: single 300 mm disc on Street / 320 mm on U.S.-spec 2026 W800. Rear: single 270 mm disc on U.S.-spec 2026; historical versions used a drum. ABS standard

Wheels: Wire-spoke wheels; W800 19/18 inches; Street/Café 18/18 inches

Tires: W800: Dunlop K300GP; 100/90-19 front / 130/70-18 rear. Street/Café: 100/90-18 / 130/70-18

Cockpit: Twin analog instruments, speedometer + tachometer; model-specific typography; supplemental LCD for mileage, fuel level, etc.

Headlight: LED, 170 mm diameter, chrome bezel; peashooter-style turn signals with chrome housings and amber lenses

Center Stand: Standard

Fuel Tank: 15 liters

Fuel Consumption: Approx. 4.0 L/100 km WMTC; range over 300 km

Electronics: ABS standard; no traction control, riding modes, or IMU

Price in Germany: No official MY2026 German price; MY2024/25 dealer inventory from approx. EUR 10,380. U.S. MY2026: $10,699 in Pearl Crystal White

Warranty: 4-year Kawasaki factory warranty with unlimited mileage
